Controlling Spacing and sizes in Design Systems

UI/UX 💩 / Tips · April 7, 2019 at 12:12pm

How to control all spacing and sizes of your designs using the 8 rule and Method Sketch Plugin


For some years now, I’ve been using a work methodology based on 8px. The goal is to improve my work-flow and shushing thoughts like “try putting this a little to the right. Wait, no! Better to the left! Let’s see it from far…”

What is the 8 rule?

The theory is quite simple: the idea is that all the elements in your design are a multiple of 8 in terms of width and height, just as their spacing.

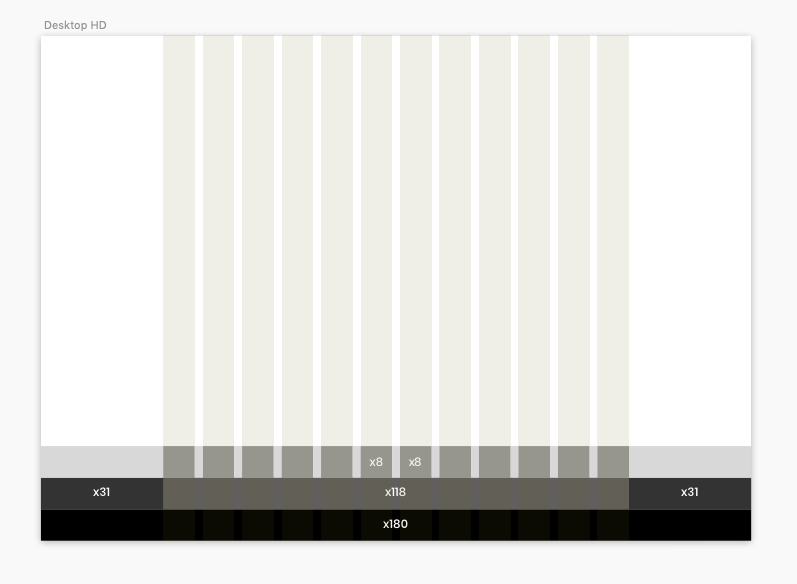

8 Rule Layout.png

Why?

Well, there are quite a few reasons why I decided to start working this way:

  • Speed. In the end, one always works with the same measures: 8,16,24,32,40,48…etc.
  • To focus on the important stuff. After all, my head only wants to focus on usability, color, experience and not on ‘that’ going a little to ‘that’ other place or the like.
  • My fellow programmers are falling in love with me. We all already know that anything that implies a rule or a repetition is a labor and time saving.
  • Unconsciously it ends up generating a fairly pleasant visual coherence. The user may not know, but the space will be constantly repeating so the design gains a vertical rhythm.

Okay, that makes sense, but… why 8?

To tell you the truth, I tried everything. 4,6,12… (even numbers, clearly), and there are some factors that made 8 the chosen one:

  • Most common resolutions are multiple of 8. Desktop 1440, Tablet 768, mobile 320… If we want to design with all our elements as multiple of 8, the container should be multiple 8. If not, I don’t think it will mathematically fit. 🥴
  • 4 is way too small and offers too many possibilities. 12 is too big and offers fewer possibilities. 6 might be worth it but, when you’re down to it, it’s quite unsatisfiable in some cases.
  • Feel free! Use the one you’re comfortable with. It always depends on the project that unexpected things fit.

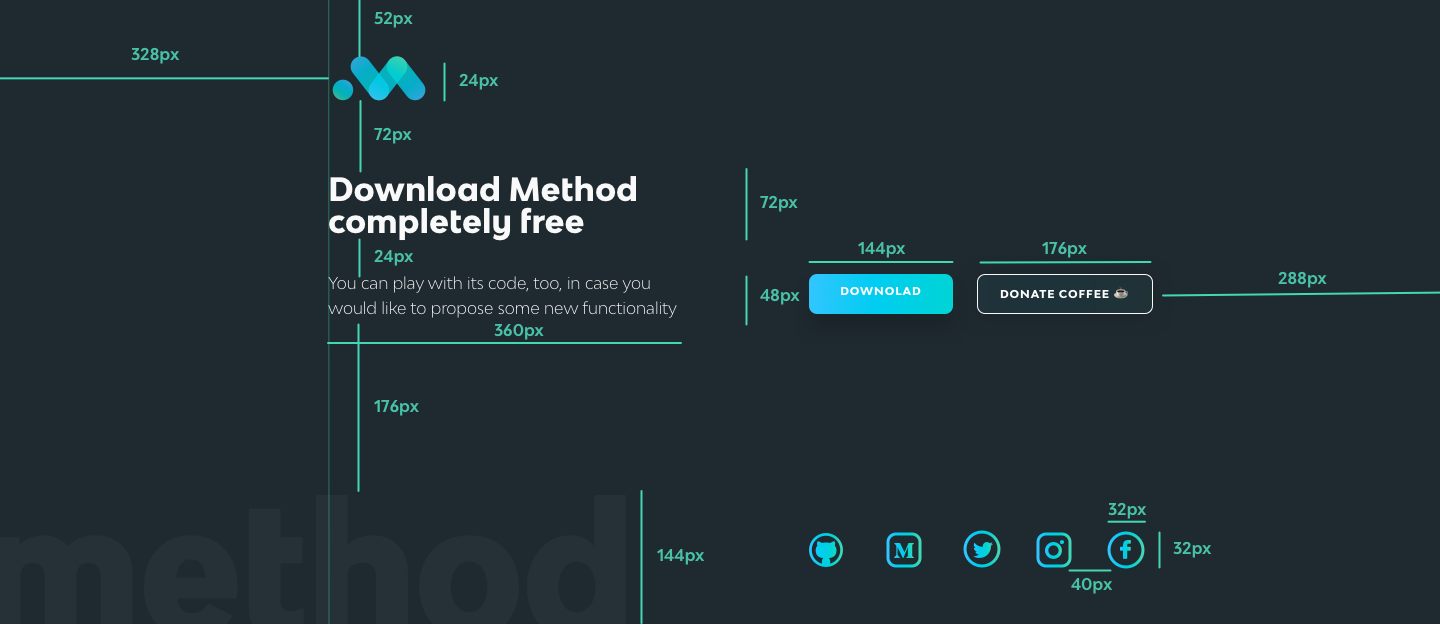

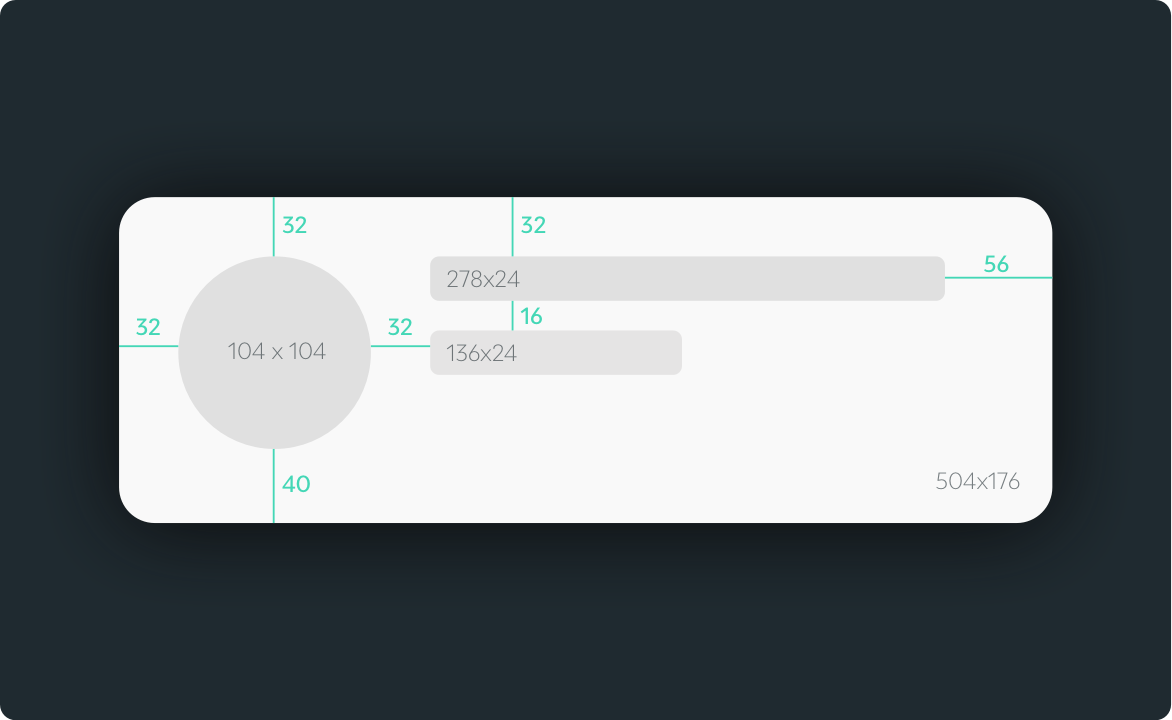

Okay, so you’ve probably even read all this stuff about 8 spacing but… what, sizes too?SpacesSizesM.png

If you’re a designer with a brush of OCD like me… please, don’t keep on reading. When you start designing with multiple spacings of 8 — as proposed by Material Design and other manuals — you realize that, if the container of the layer you’re positioning doesn’t have a multiple of 8 size it’ll. JUST. NOT. FIT! However, if everything is a multiple of 8… it will always fit; be it 144, 1600… you name it.

Of course, this was a big problem for me — imagine me tapping on my calculator all day long (I even learnt the multiplication tables from 8 to 20 by heart).

Method Sketch Plugin

That’s why I decided to create a plugin to spare me the suffering. Later, I realized that maybe many of you might have the same problem, so I thought of sharing it with you all, in case you need it, Let’s take a look at Method’s features.

CheckButton.pngClick here!

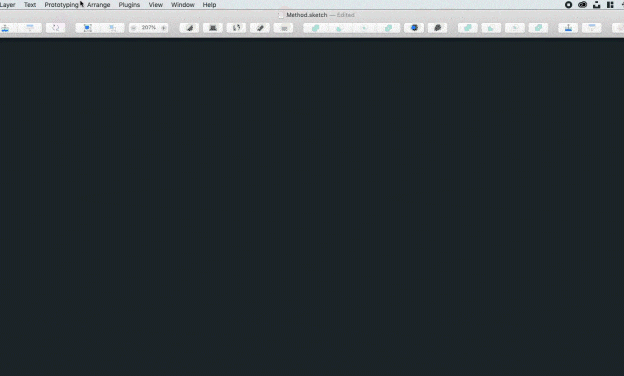

Settings

I am an advocate of working with multiples of 8 but, if someone has another preference, you will be able to change it. The following examples are made with multiples of 8 just to be clearer

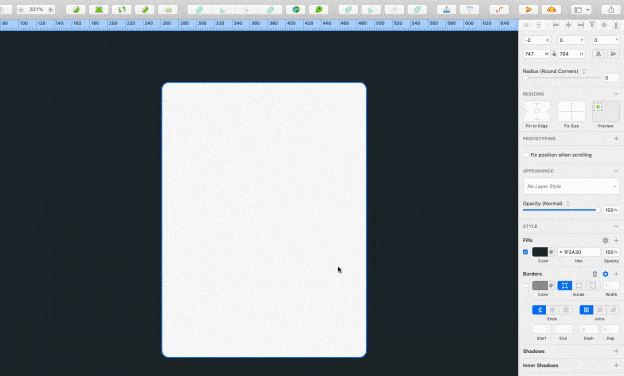

Round

Goodbye, calculator! Ctrl+8 and the object will be shaped to 8 in height and width. If the height and width are multiple of 8, all the elements that we fit in the (as long as they are multiple of 8), can have a multiple spacing of 8.🤓

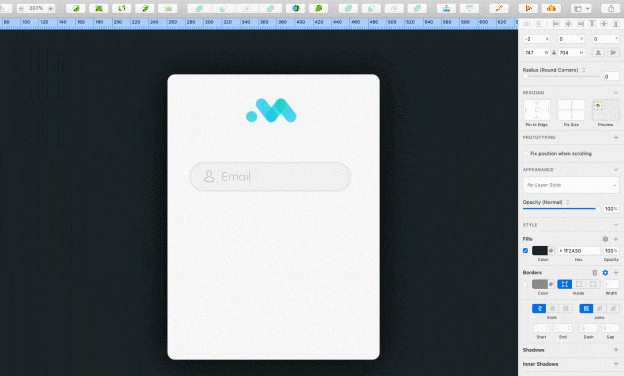

Resize

“Just a bit more” “Just a Little less” but 8 by 8 version

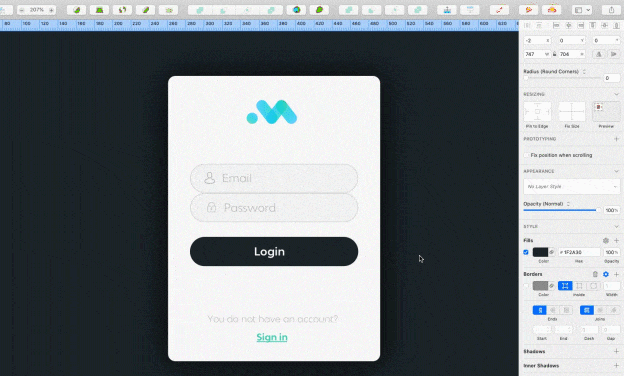

Move

Move from 8 to 8, so damn easy! I have included a layout to the plugin download, so that everything that fits in it, it will be a multiple of 8, to basically just get on with it!

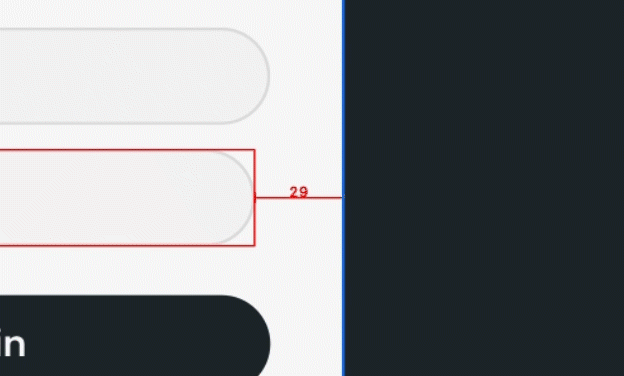

Future

It is always a work in progress but, with some or other technical difficulty (I’m not an emoji programmer, you know) the idea is that this methodology flows softly with smart-guides. If someone wants to try it on GitHub, the source code is completely free and modifiable. 🤪


April 7, 2019 at 1:57pm

This will be really helpful thread for me. Because I have been working on a UI Kit for 2 weeks. It is almost done, but I am thinking about creating a Design System for it. Thank you, @kike! 😉

    like-fill
    3
    • reply
    • like

    April 7, 2019 at 3:34pm

    I'm glad you can use @nicatmanafovv !

    If I can help you with something tell me😉

      like-fill
      2
      • reply
      • like

      Kike, this is such a great post. I believe lot of designers will find it useful as long with your Sketch Plugin Method. Thanks for sharing it !! 👍

        like-fill
        1
        • reply
        • like

        This is awesome, i've been jump into UI design lately.9 and 18 is my best friend so far, don't know why. i will try using 8 from now

          like-fill
          2
          • reply
          • like

          This is awesome, i've been jump into UI design lately.9 and 18 is my best friend so far, don't know why. i will try using 8 from now

            9 is very powerful number in math and universe and it's my fav from when i was a kid

              Edited
              like-fill
              2
              • reply
              • like

              April 8, 2019 at 1:52am

              Thanks! That´s awesome

                like-fill
                1
                • reply
                • like

                April 15, 2019 at 9:18am

                Just discovered this thread while cleaning chats. It. Is. GREAT. Love it. I started use the rule of 8 like month ago and i must say it is really great! Now i want to redesign all my designs from rule of 5 to rule of 8, haha. Gonna check the Method plugin for sure. Great job man 👏

                  like-fill
                  3
                  • reply
                  • like

                  April 24, 2019 at 9:47am

                  Just discovered this thread while cleaning chats. It. Is. GREAT. Love it. I started use the rule of 8 like month ago and i must say it is really great! Now i want to redesign all my designs from rule of 5 to rule of 8, haha. Gonna check the Method plugin for sure. Great job man 👏

                    Thank you very much! I'm glad it's useful to you. ☺️

                      • reply
                      • like

                      May 6, 2019 at 10:54pm

                      Hi, This plugin is available for Adobe Xd? :)

                        Edited
                        • reply
                        • like

                        May 7, 2019 at 12:01am

                        Hi, This plugin is available for Adobe Xd? :)

                          i think its only for Sketch. But that is good idea for XD plugin

                            • reply
                            • like

                            May 17, 2019 at 8:54am

                            Hi @kike! I can't get the "Round" command to work, nothing happens. Any idea why? I'm on Sketch v54 and Mojave OS. Thanks!

                              like-fill
                              1
                              • reply
                              • like

                              May 23, 2019 at 10:17am

                              Hi!

                              Can you try selecting a new value in settings? If the error continues tell me and I look for a solution! :)

                                • reply
                                • like

                                May 24, 2019 at 1:37am
